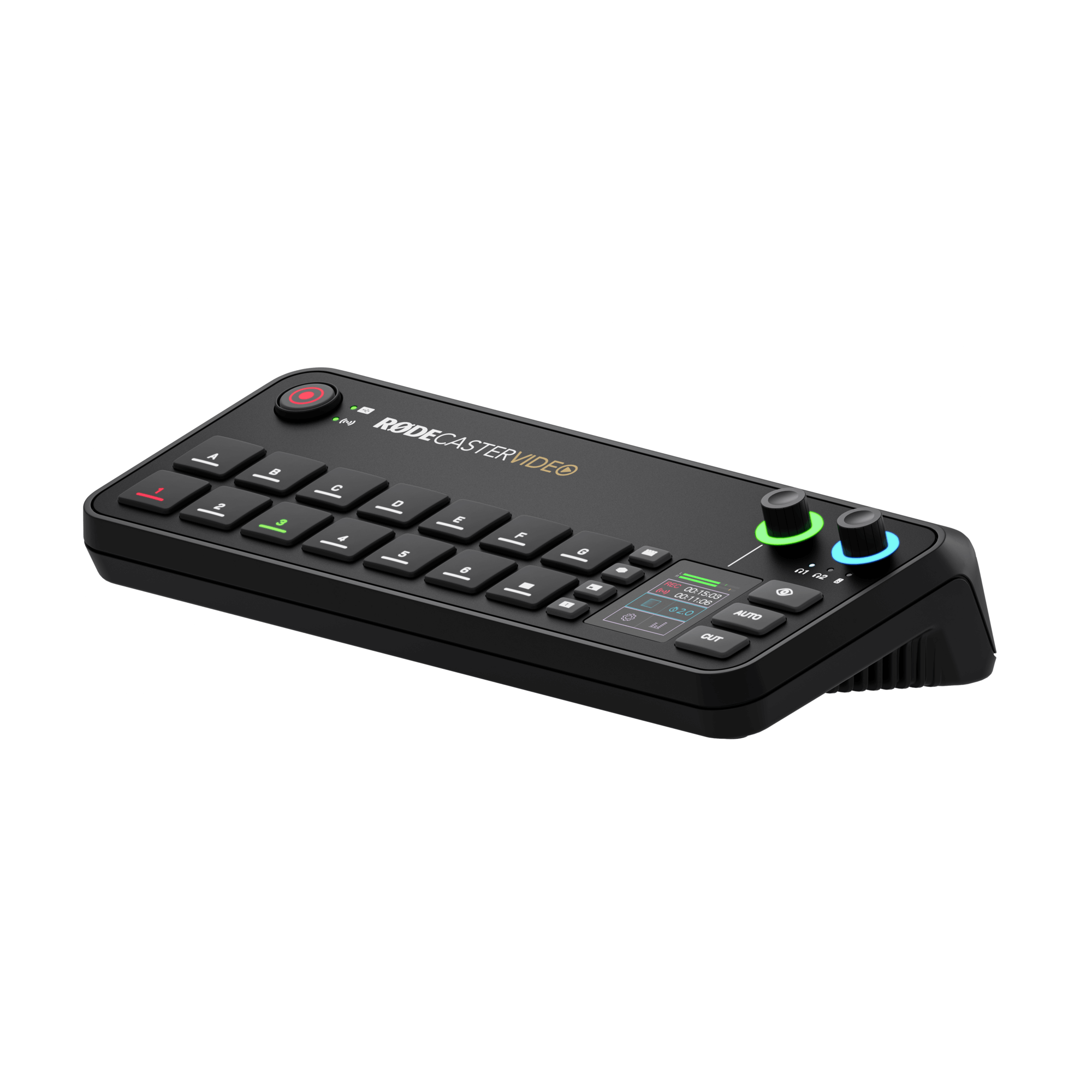

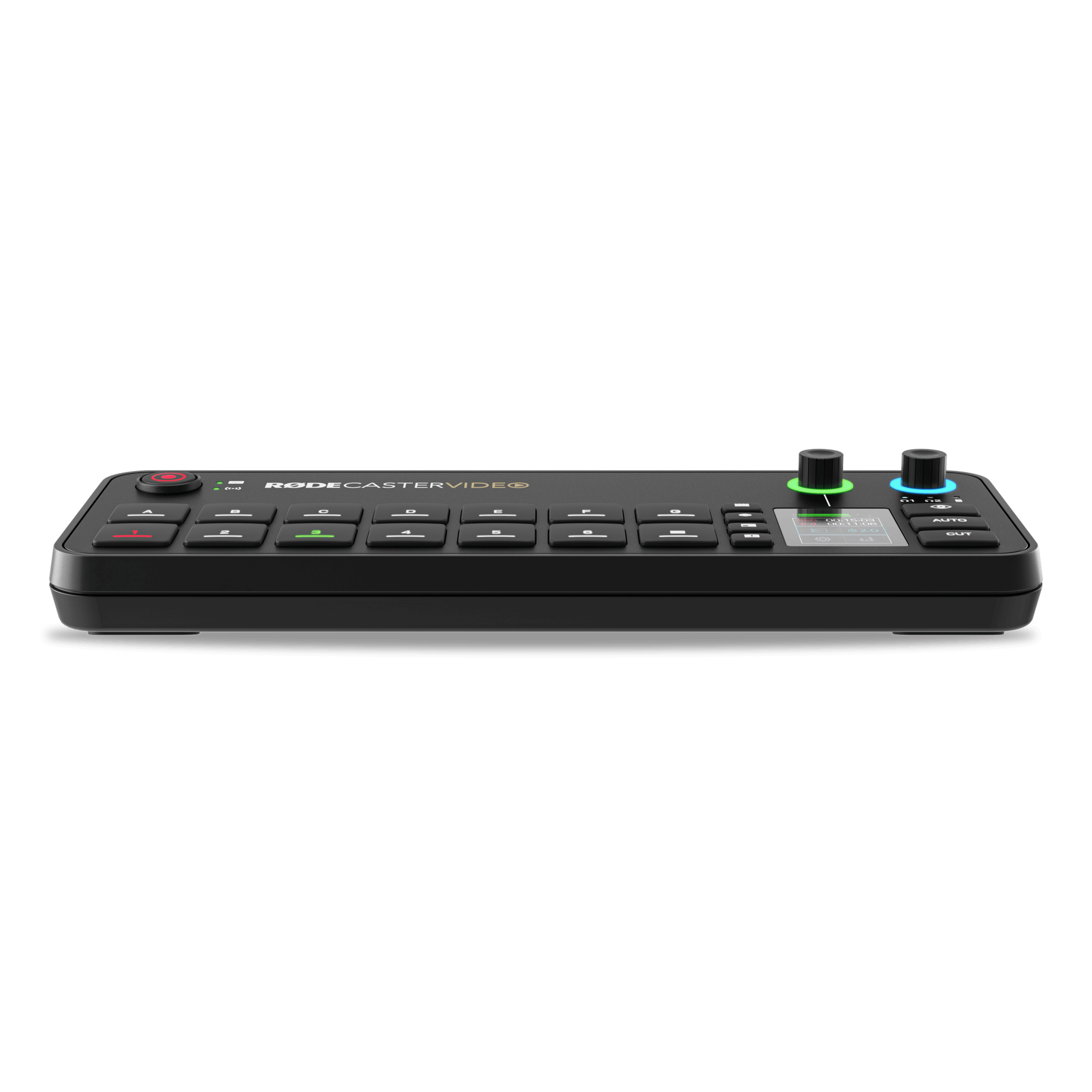

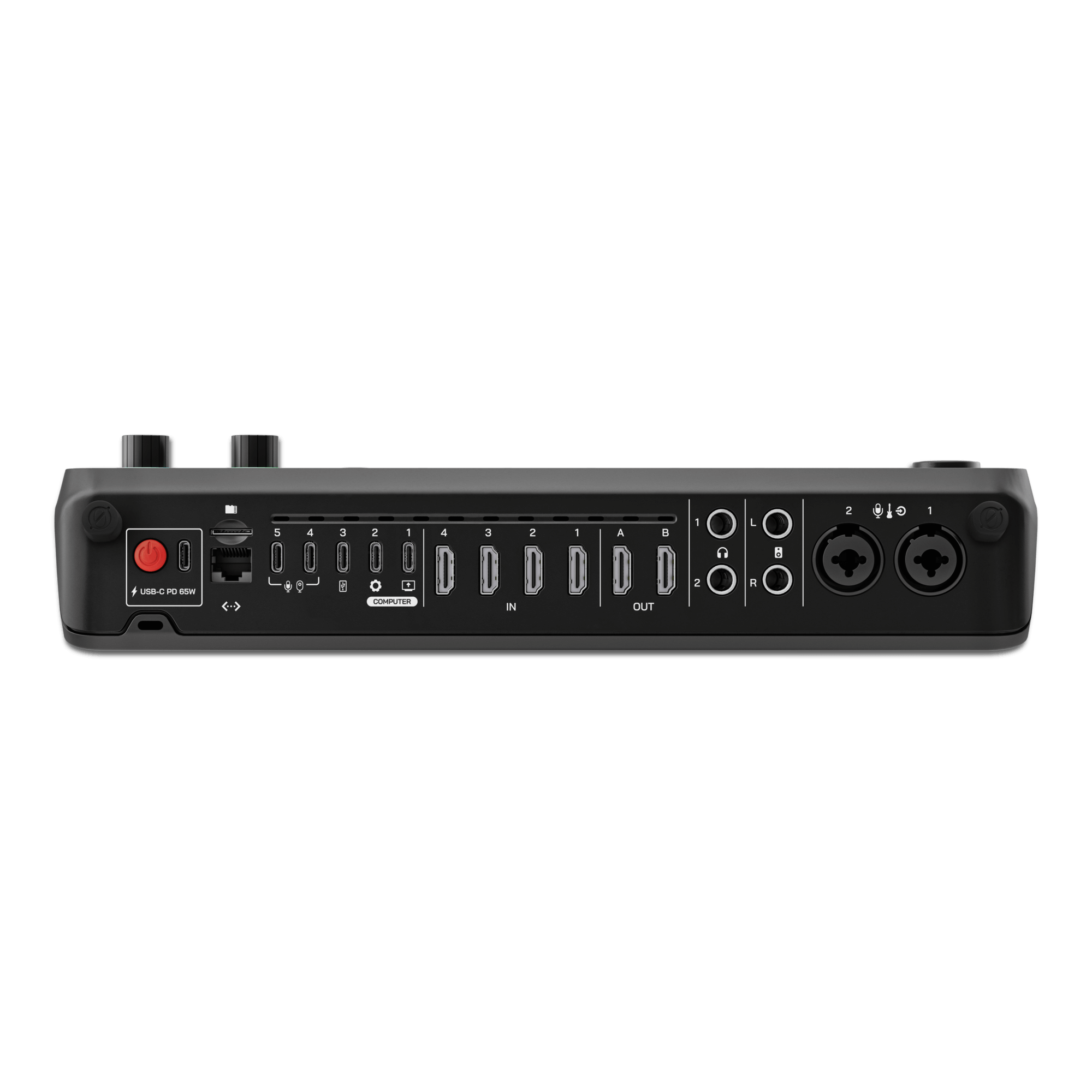

RODE Caster Video Video and Audio Production Console
70,000
💳 Installments starting from 11667 EGP/mo
×
Easy Pay
Select your preferred plan
BNPL
Banks
Description
RØDECaster Video – Key Specifications
Audio Inputs
| Type | Details |
|---|---|
| Analog Audio Inputs | 2 combo jacks (mic, line, or instrument) with Revolution Preamps™ |
| Wireless Audio Inputs | 2 Series IV wireless receivers |
| Digital Audio Inputs |
USB 1: 2-in/2-out or multichannel (20-in) output USB 1 Chat: 2-in/2-out with mix-minus USB 2: 2-in/2-out with MFi support USB 4 & 5: Compatible with RØDE USB microphones, RØDECaster Pro II/Duo |
Audio Outputs
| Type | Details |
|---|---|
| Analog Outputs | 2 headphone outputs (1/4-inch), 2 balanced line outputs (1/4-inch L/R) |
| Audio Mixer | Up to 20 audio sources (9 stereo simultaneously) including combo jacks, wireless, video clips, HDMI 1-4, Bluetooth, USB interfaces, microphones 12 outputs with custom routing (live mix, headphones, recording, monitors, USB channels, Bluetooth) |
Audio Processing
| Feature | Details |
|---|---|
| APHEX® VoxLab™ Processing | Per channel: Compressor, EQ, De-esser, Panning, Noise Gate, High-pass Filter, Aural Exciter™, Big Bottom™ |
| Preamps | Frequency range: 20 Hz – 20 kHz Input gain: up to 76 dB Equivalent Input Noise: -131.5 dBV (A-weighted) |
| Streaming Sample Rate / Bit Depth | 48 kHz / 32-bit |
| Recording Sample Rate / Bit Depth | 48 kHz / 24-bit |
Video Inputs & Outputs
| Type | Details |
|---|---|
| Video Input Feeds | 6 simultaneous |
| HDMI Inputs | 4 Type-A (HDMI 1.4b) |
| USB (UVC) Inputs | 2 multi-function USB-C |
| HDMI Outputs | 2 configurable – preview, program, multiview |
| Video Input Frame Rates | 1080p: 23.97, 24, 25, 29.97, 30, 50, 59.94, 60 1080i (HDMI only): 25, 29.97, 30 |
| Video Output Frame Rates | 1080p: 24, 25, 30, 50, 60 |
| Video Engine Colour Space / Bit Depth | 4:4:4 RGB / 8-bit |
| HDMI Input Colour Space / Bit Depth | 4:4:4 RGB, 4:4:4 YUV, 4:2:2 YUV / 8, 10, 12-bit |
| USB Input Colour Space | 4:2:2 YUV, 4:2:0 YUV (NV12) |
| HDMI Output Colour Space / Bit Depth | 4:4:4 RGB, 4:4:4 YUV / 8-bit |
| USB Output Colour Space / Bit Depth | 4:2:2 YUV / 8-bit |
| Format & Frame Rate Converters | On all HDMI and USB inputs |
Streaming & Network
| Feature | Details |
|---|---|
| Direct Streaming | RTMP/RTMPS over Ethernet or Wi-Fi |
| Supported Platforms | YouTube Live, Twitch, Facebook Live, Twitter/X Live, Custom server |
| Network | Ethernet (10/100/1000 Base-T), Wi-Fi 6 (2.4 & 5 GHz) |
Recording
| Feature | Details |
|---|---|
| Storage Media | External USB mass storage device (exFAT) |
| Video Recording | Program feed as H.264/AVC MP4 with embedded AAC stereo mix |
| Isolated (ISO) Video Recording | 6 video inputs + 1 program feed as independent H.264/AVC files (up to 1080p30) |
| Audio Recording | Stereo mix WAV file |
| Multitrack Audio Recording | 9 independent stereo WAV files |
Software
| RØDE Central Companion | Scene builder, auto-switching, audio mixer, stream profiles, device configuration, remote control |
Operating System Compatibility
| OS | Requirement |
|---|---|
| macOS | 11 or later |
| Windows | 10 Version 1803 or later, Windows 11 |
